Sonic Welders

GENERAL DESCRIPTION:

Our Sonic Welders provide a tamper evident seal on plastic containers. We have total adjustability on the tray height and width for fast and easy tray changes on the fly. These machines have a user friendly touch screen that can keep track of valuable information like faults, total hours and containers per shift or day. Machines can be customized to fit your needs, product and infrastructures.

DESIGN FEATURES:

• User friendly design.
• Sanitary friendly open frame design.
• All Support Structure and Food Contact Surfaces fabricated with AISI304 Stainless Steel.
• All Plastic is food grade and USDA approved.
• Watershed Enclosure.
• Touch screen Panel View Plus 6 by Allen Bradley.
• PLC MicroLogix 1400/ Software Factorytalk Studio Me.
• Branson 240 VAC power supply.
• Legs ACME thread for adjustable conveyor height.
• Adjustable shuttle height and width for different size trays.
• • Adjustable positive stops making it easy to switch between different tray sizes.
• Built in air system that keeps the air clean and dry to prolong the life of the sonic welder stacks.
• Bull nose conveyor ends to allow smoother transitions for trays between equipment.
• Safety switch on the doors shut down the machine if opened.
  Input Power Options Available:
   • 240VAC-1PH-60HZ.
   • 480VAC-3PH-60HZ.

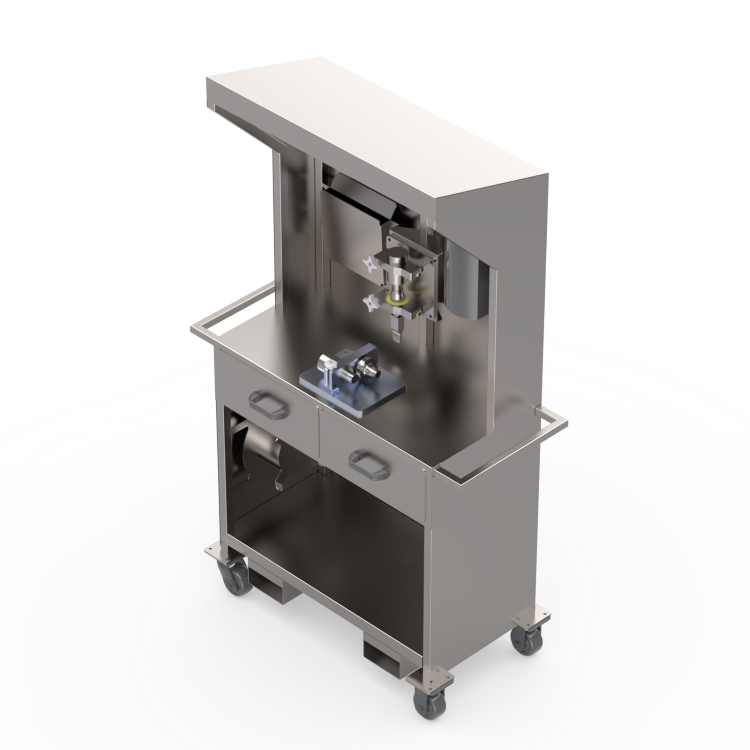

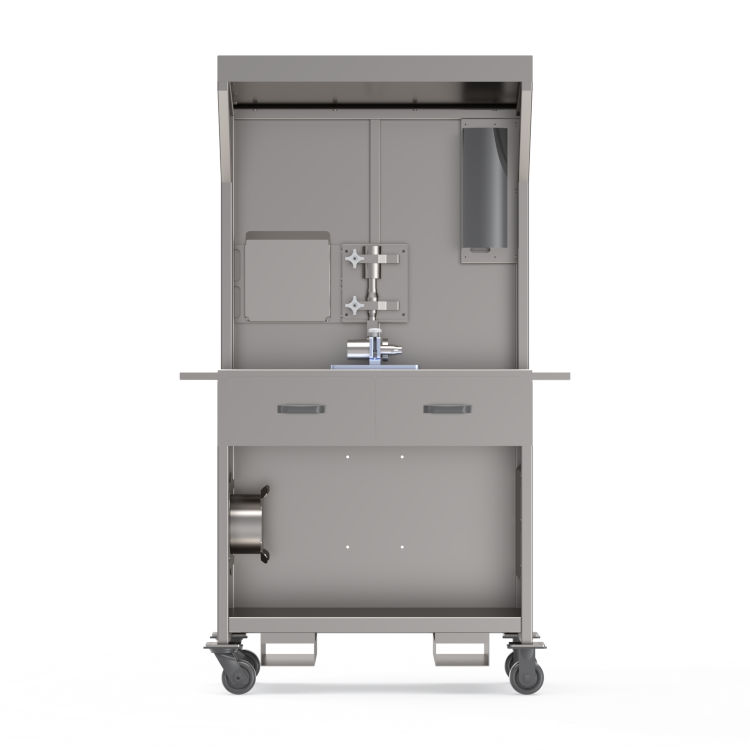

SONIC WELDER SERVICE CART.

The Sonic Welder Service Cart serves multiple functions, from supporting the stack for assembly / disassembly, it holds the Stack to torque the components to the right specs, and for testing the Stack working frequencies. When the Ultrasonics are not working correctly, the Service Cart can also help diagnose the problem by process of elimination. If you suspect that you have a bad power supply, plug the carts power supply into the stack on the machine. If the same problem still exists, then the problem lies within the stack.

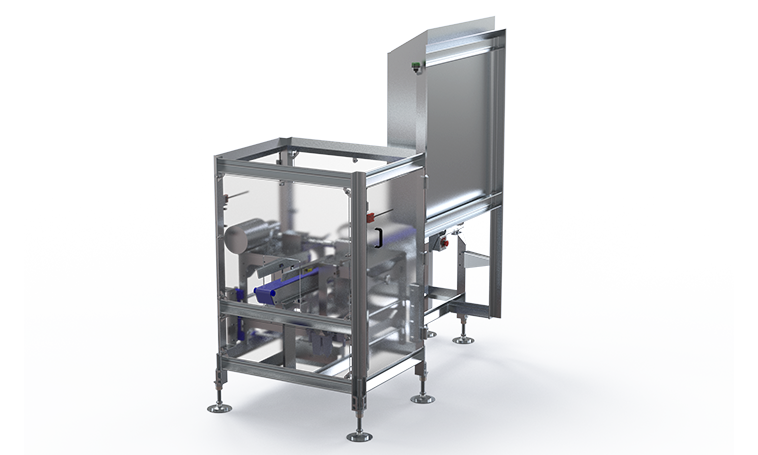

SINGLE LINE SONIC WELDER

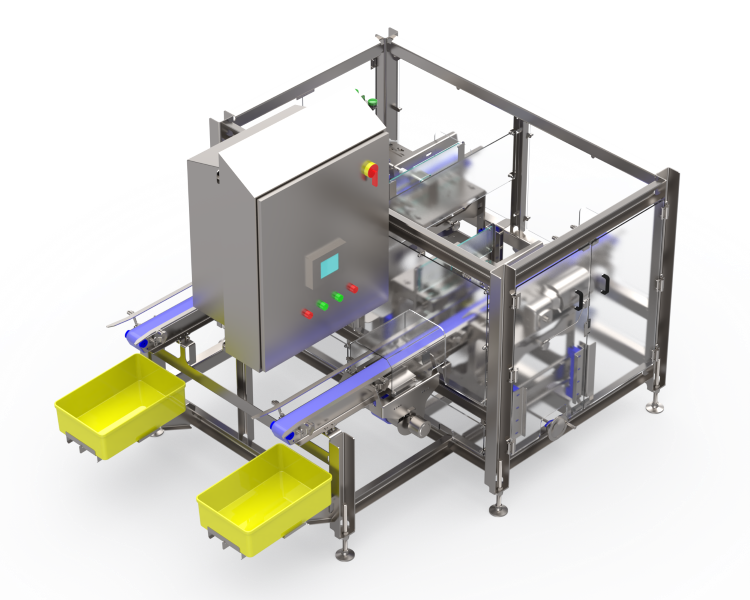

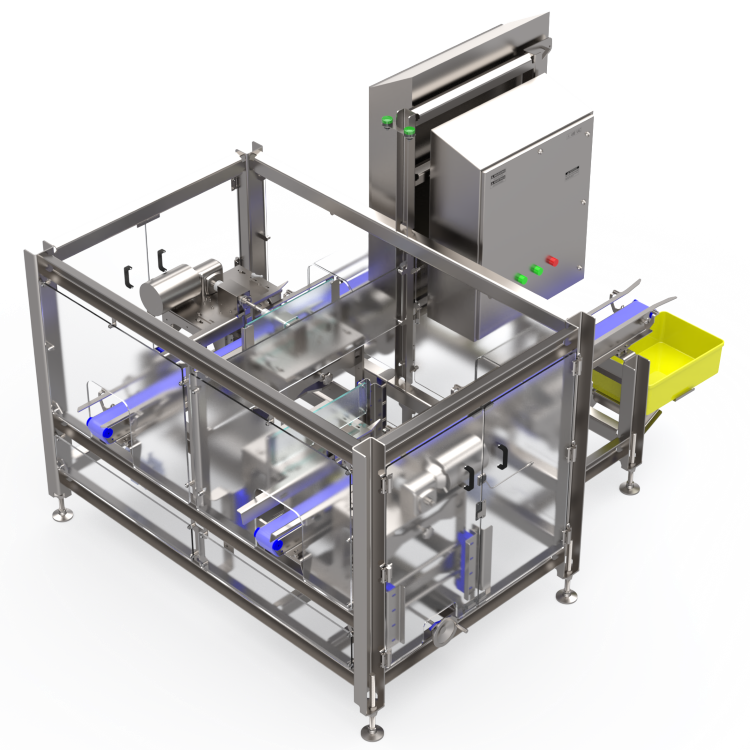

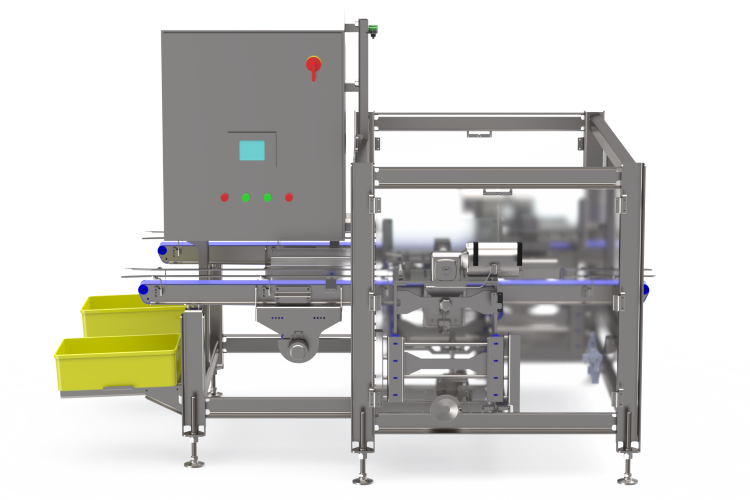

DUAL LINE SONIC WELDER




SONIC WELDER SERVICE CART
