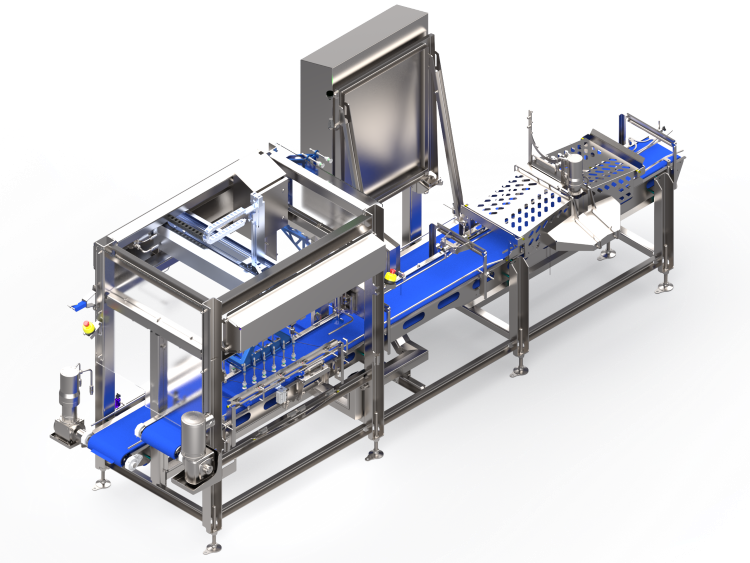

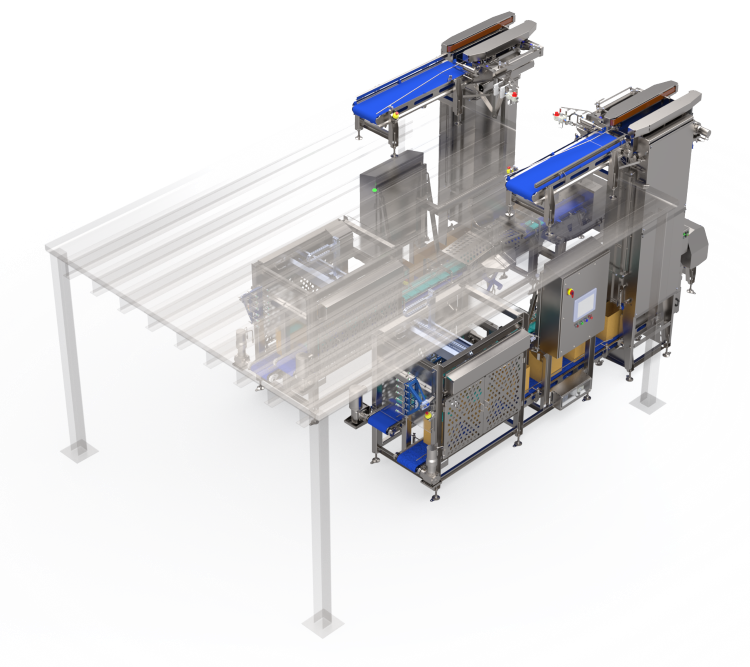

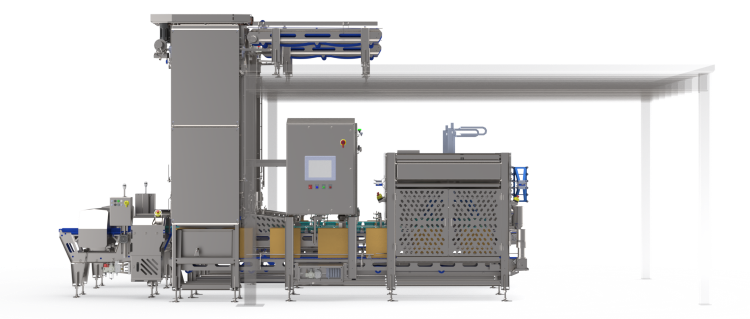

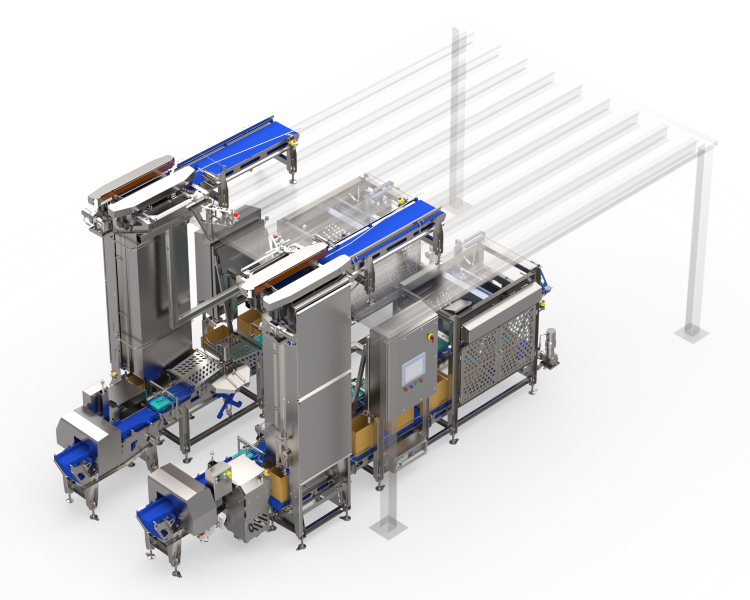

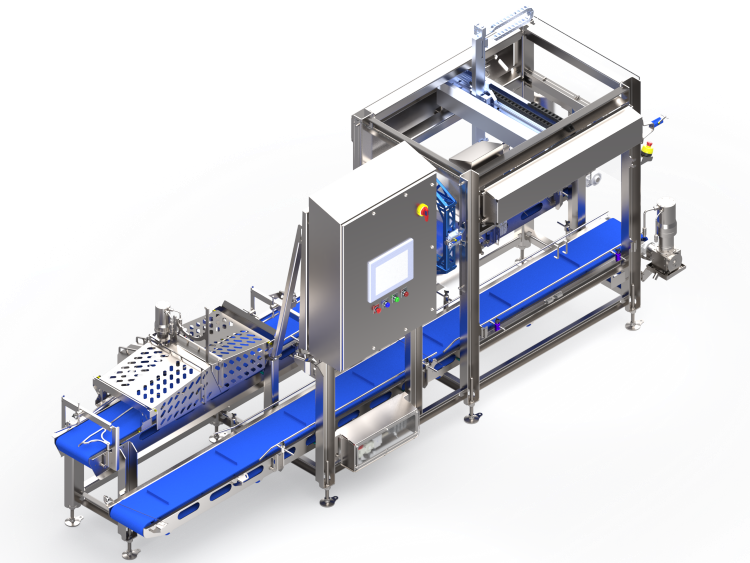

Our Auto Case Packing Systems are designed to automate the repetitive process of packing finished product containers (Bowls, Trays, Bags, etc.) into cases (boxes). We manufacture different solutions for specific containers and case filling configurations to fit your needs and or capacities. We have integrated optional components to increase the throughput of our system, from a Case Code Printer to a Case Lowerator (Vertical Case Feeder Conveyor). The amount of head count and skilled labor needed with this process has been reduced with the use of our systems. Our customers have seen an immediate reduction in cost per unit and a quick return on their investment.
DESIGN FEATURES:• Sanitary Friendly Open Frame Design
• All Support Structure and Food Contact Surfaces fabricated with AISI304 Stainless Steel
• All Nuts & Bolts are 18-8 Stainless Steel unless otherwise specified.
• All Servo Motors and Cabling are IP65 Certified or better.
• All Plastic is food grade and USDA approved.
• Easy Change Placer Head Design.
• Optional Tray Turning Feature.
• Optional Case Printer Integration.
• Upgraded PanelView Screen.
• AB Compact Logix / Kinetix Platform.
• Watershed Enclosures.
