AUTOMATED FILLING AND TAMPING SYSTEM

GENERAL DESCRIPTION:

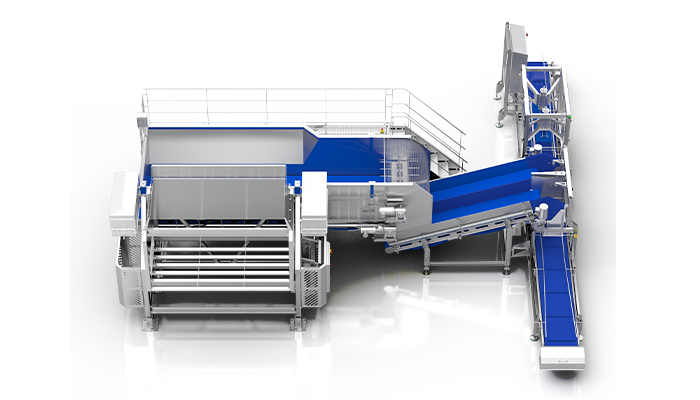

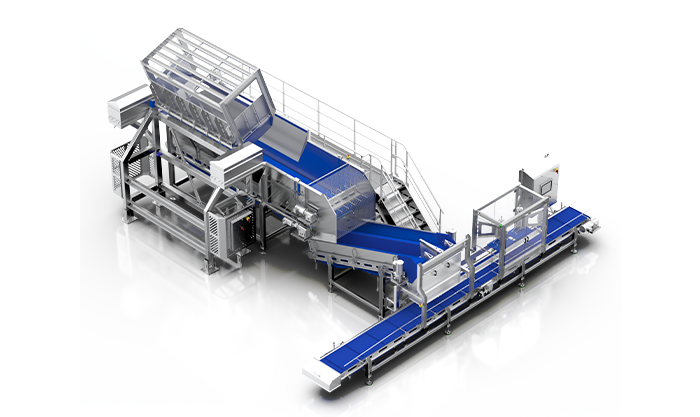

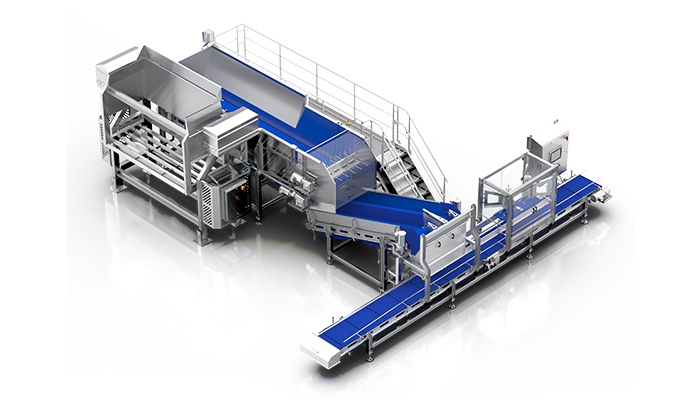

The Automated Filling and Tamping Conveyor Systems purpose is to receive of specific load of product (i.e., spinach, spring mix, etc.) from 2 Dumper Bins and deliver it to containers (Totes) 2 at a time by utilizing a “Line” made up of a series of machines. These series of machines are as follows: "Dual Electric Bin Dumper", "Dual Bin Metering Hopper with Dispersing Rake System", "Split Conveyor System", "Tote Filling and Tamping Conveyor", and "Working Platform for Bin Dumper Area". The panel view is an user friendly interface in which the operator has the ability to select recipes.

DESIGN FEATURES:

• Sanitary friendly open frame design.
• All Support Structure and Food Contact Surfaces fabricated with AISI304 Stainless Steel.
• All Plastic is food grade and USDA approved.
• Watershed enclosure.
• Easily Adjusted for Different Size Tote Bins.
• PLC MicroLogix 1400/ Software RSLogix 500.
• 7" color touch screen Allen Bradley.
